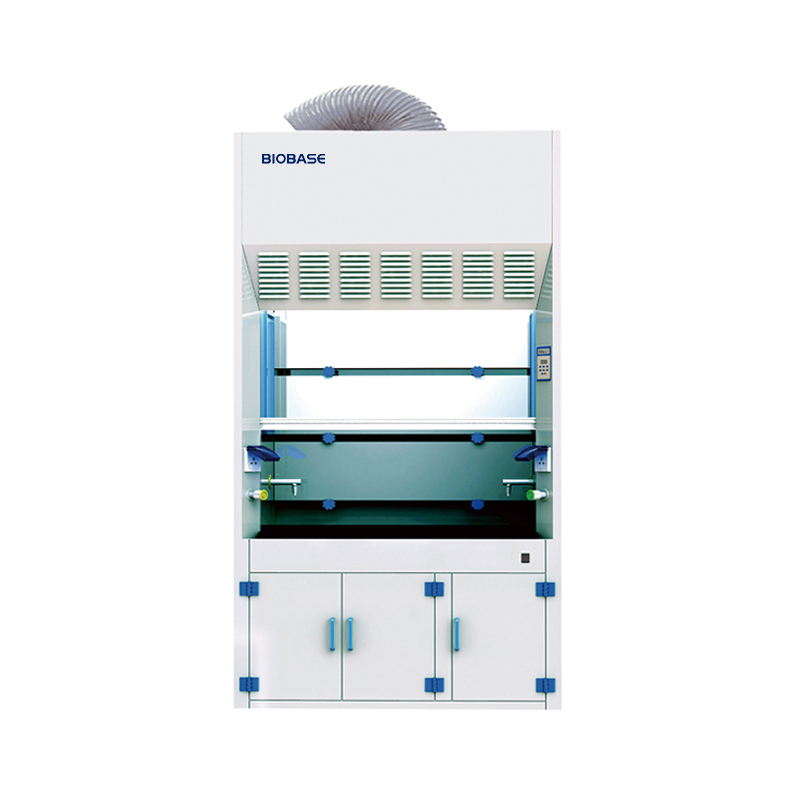

BIOBASE FH(P) Series Pp Fume Hood China

  1. Home
  2. ALL
  3. Air Protection Product
  4. BIOBASE FH(P) Series Pp Fume Hood China
Categories: ,
General Details

Brand BIOBASE

Product origin CHINA

Supply capacity Factory Direct Supply

It is a new type of technical equipment for air-conditioned workshop and clean workshop. Widely used in electronics, chemical, machinery, medicine, universities, laboratories and other fields. The fume hood can be used for the operation of potentially dangerous or unknown infection factors, as well as the experiment of strong acid, strong alkali, strong corrosive and volatile. Protect operator and sample safety.

Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
Advantage:

  • It is safer to use anti-corrosive water tap.
  • Microprocessor control system, LED display
  • With memory function in case of power-failure
  • Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.
  • Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
Model
Model FH1000(P) FH1200(P) FH1500(P) FH1800(P)
External Size (W*D*H) 1047*800*2450mm 1247*800*2450mm 1547*800*2450mm 1847*800*2450mm
Internal Size (W*D*H) 787*560*700mm 987*560*700mm 1287*560*700mm 1587*560*700 mm
Work Surface Height 820mm
Max Opening 740mm
Air Velocity 0.3~0.8m/s
Noise ≤68dB
Exhaust Duct 4.3 meters, φ250mm
LED Lamp 12W*2 12W*2 22W*2 18W*2
Blower Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable
Front Window Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable.
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption 400W 400W 500W 700W
Standard Accessory LED light;

Work table: Chemical resistant phenolic resin;

4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm;

Pipe strap*2(4 pcs for FH1800(P) only);

RVV power cord(3*1.0mm²*3000mm);

Base cabinet;

Waterproof socket*2;

Tail insert;

Water tap(PP);

Gas tap(PP);

Water Sink;

PP centrifugal blower*1(2 for FH1800(P) only)
Optional Accessory PP work table, epoxy resin board or ceramic board;

Active carbon filter;

Outer PP centrifugal blower*1(only need to select when the duct more than 4m, 2 for FH1800(P) only);

Splicable base cabinet(only not for FH1800(P) )
Gross Weight 137kg 155kg 180kg 206kg
