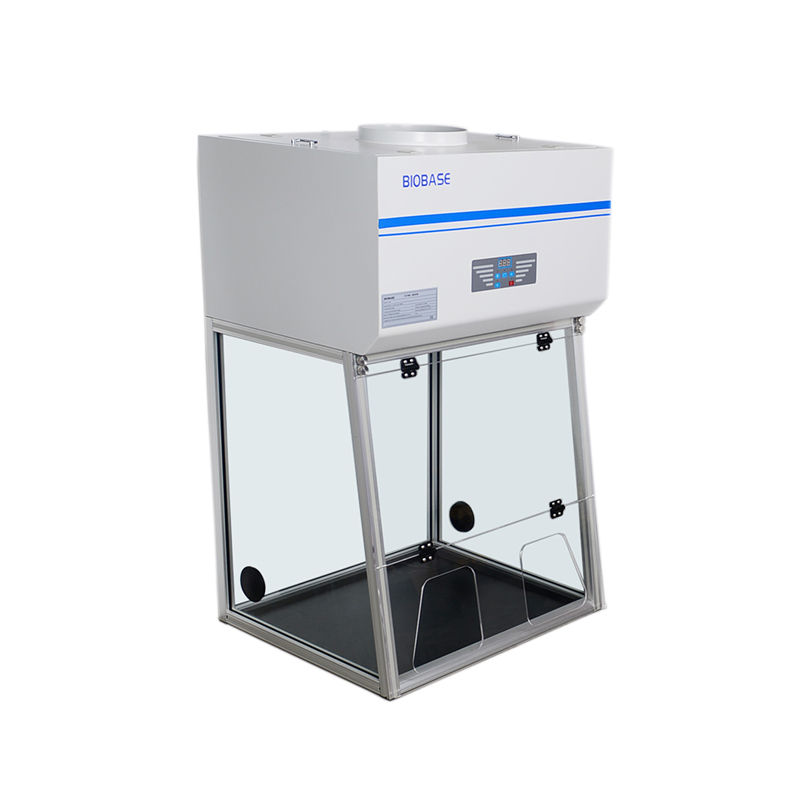

BIOBASE Small Benchtop Vertical Compounding Hood Manufacturer
Brand BIOBASE
Product origin CHINA
Supply capacity Factory Direct Supply
Laminar Flow Cabinet-sample protection only Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particles-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. Laminar flow cabinet is widely used in medical research laboratories, hospital, manufacturing facilities and other research and production environments.
Advantage：
- Air speed adjustable.
- Tabletop type, easy to carry and save space.
- Microprocessor control system, LED Display.
- HEPA Filter with efficiency:99.999% at 0.3 μm.
| Model | BBS-H1100(Previous name: BBS-DDS) | BBS-H1500(Previous name: BBS-SDS) | BBS-H1800(X) |
|---|---|---|---|
| External Size(W*D*H) | 1100*808*1690mm | 1500*808*1690mm | 1800*808*1890mm |
| Internal Size(W*D*H) | 1000*500*600mm | 1400*500*600mm | 1700*500*600mm |
| Work Surface Height | 75-~1010mm | ||
| Max Opening | 480mm | ||
| Display | LCD display | ||
| Airflow Velocity | Average of 0.30~0.45m/s | ||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel Side Windows: 8mm toughened glass, anti-UV |
||
| Pre-Filter | Polyester fiber, washable | ||
| HEPA Filter | One, 99.995% efficiency at 0.3μm | ||
| Noise | ≤68dB(A) | ||
| LED Lamp | 12W*1 | 16W*1 | 16W*2 |
| UV Lamp | 20W*1 | 30W*1 | 20W*2 |
| Waterproof Socket | Two, total load≤500W | ||
| Consumption | 200W | 300W | 400W |
| Caster | Universal caster with leveling feet | ||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||
| Standard Accessory | LED lamp;
UV lamp*2; Base stand; Waterproof socket*2; Hook*10 |
||
| Optional Accessory | Electric height adjustable base stand | ||
| Gross Weight | 175kg | 216kg | 255kg |
| Package Size（W*D*H） | 1250*1050*1350mm | 1650*1050*1350mm | 1950*1050*1550m |
