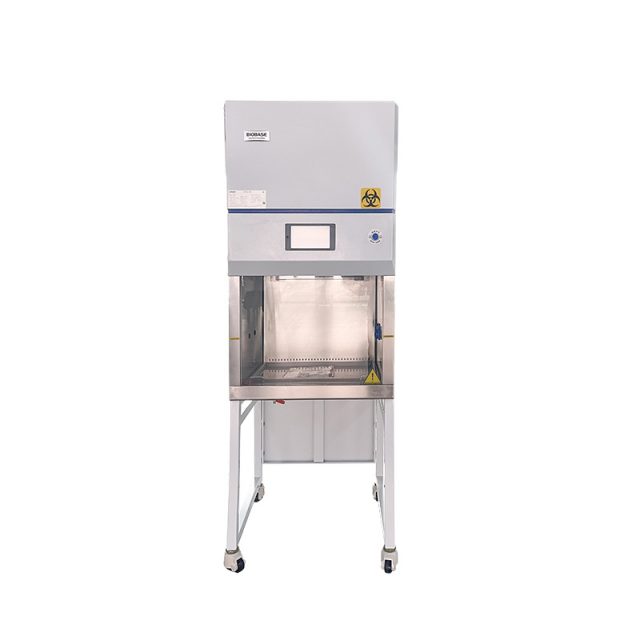

Class Ⅱ Biological Safety Cabinet 11231 PRO

General Details

Brand BIOBASE

Product origin CHINA

Supply capacity Factory Direct Supply
Application
7 inch Large touch screen with Intelligent control system: Operators can check detailed status of the cabinet,such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working timeand filter working time, filter life indicator etc.
Features:

  • Small dimension, save space.
  • Centrifugal fan, speed adjustable; H14 HEPA filter.
  • Motorized front window: The front window is motorized for convenient, one-hand operation.
  • Audio and visual alarm: Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm.
  • Self-locking button switch to solve the trouble of losing the key
  • Removable handle design, easy to move.
  • 7 inch Large touch screen with Intelligent control system: Operators can check detailed status of the cabinet.
  • With memory function in case of power-failure.
  • Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
Model
Model 11231 BBC 86-Pro
External Size (W*D*H) 700*650*1230mm
Internal Size(W*D*H) 600*500*540mm
Tested Opening Safety height 200mm(8″)
Max Opening 370mm(15’’)
Inflow Velocity 0.53±0.025m/s
Down Flow Velocity 0.33±0.025m/s
HEPA Filter Two, 99.995% efficiency at 0.3μm. Filter life indicator
Front Window Motorized. Single Layer toughened glass≥5mm. Anti UV
Noise ≤ 67dB
UV Lamp 15W*1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LED Lamp 8W*2
Illumination ≥1000Lux
Consumption 500W
Socket Two, total load of two sockets: 500W
Display 7 inch large touch screen
Control System Microprocessor
Airflow System 70% air recirculation, 30% air exhaust
Visual and Audio Alarm Filter replacement, window over height, abnormal air flow velocity High filter pressure alarm.
Material Work Zone: 304 stainless steel.

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Surface Height 750mm with optional base stand
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory LED lamp, UV lamp*2, Remote control, Waterproof sockets*2, base stand, handle*4 .universal caster with brake and leveling feet
Optional Accessory SS Water tap*1, SS Gas tap*1
Packing Size (without base stand Carton: 730*787*1450mm

Wood: 860*780*1420mm

Gross Weight (without base stand) Carton: 120kg

Wood: 140kg

Packing Size (with base stand) Carton: 850*787*1450mm

Wood: 860*970*1420mm

Gross Weight (with base stand) Carton: 140kg

Wood: 160kg
