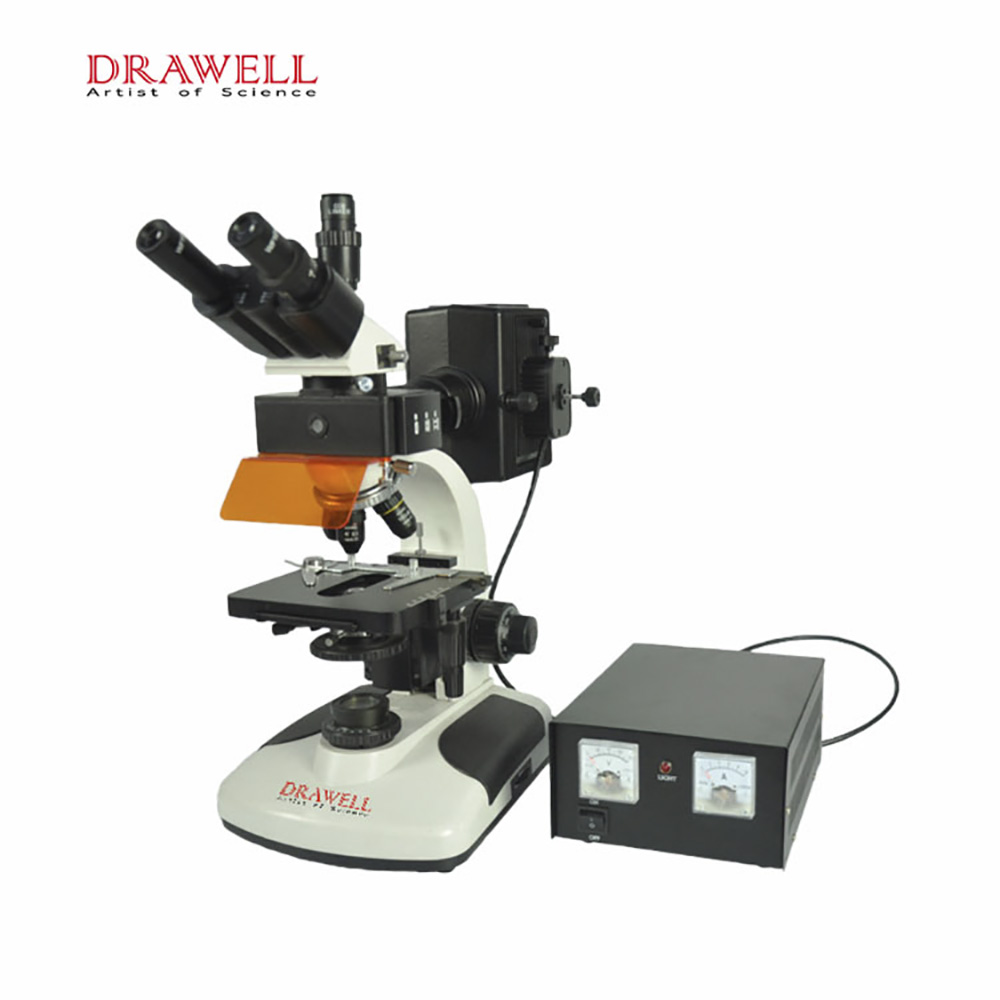

DW-2002H Trinocular Fluorescent Microscope

General Details

Brand BIOBASE

Product origin CHINA

Supply capacity Factory Direct Supply
Articulated Free Trinocular Head, interpupillary distance: 55-75mm,30˚inclined, 360°Rotatable;

The adjustable height range of the vertical tube: 10mm;

Wide field plan-scope eyepiece: WF10X/18mm and Wide Field Plane-scope Eyepiece WF16X/13mm;

Achromatic Objective 4X,10X,40X(s) ,100X(s,oil)

Double Layers Mechanical Stage:140X155mm, moving range X-Y: 70X50mm;

ABBE Condenser: N.A.1.25; Φ2-Φ30mm Iris Diaphragm and Φ32 filter
Coaxial Coarse and Fine Adjustable Mechanism:30mm, fine focusing adjustable precision: 0.002mm;
B(blue) exciting lighting filter system, wavelength 450-490mm;

G(green) exciting lighting filter system, wavelength 510-570mm;
Bottom Built-in Adjustable Brightness halogen lamp 6V/20W

Body package: 1set/ctn 42X31X52cm G.W: 9.3kgs
Fluorescent attachment package: 1set/ctn 46X38X23cm G.W: 6kgs
