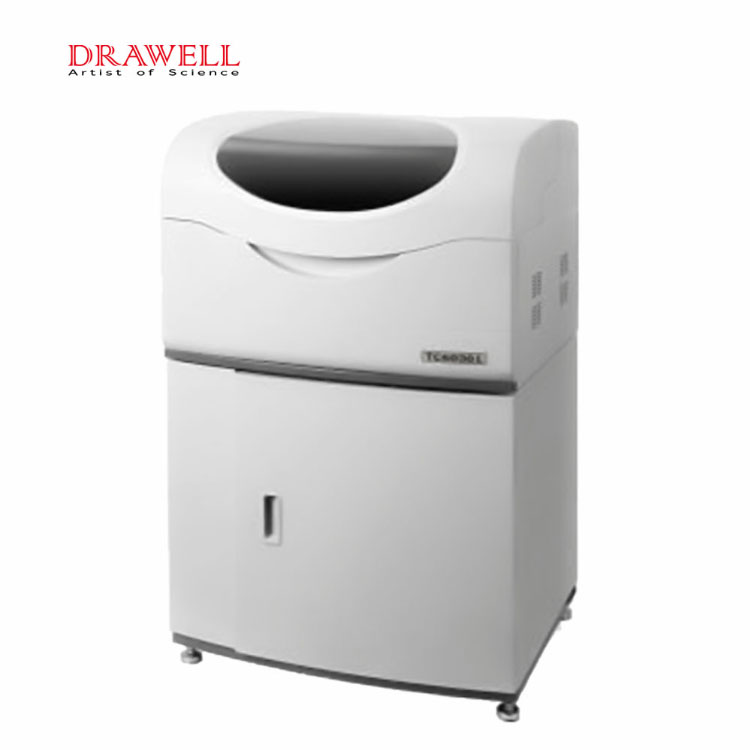

DW-TC6030 Automatic Chemistry Analyzer

General Details

System Functions
– Fully automatically, discrete, random STAT function
– Online test items: at most 40 testing items
– Throughput: 260 tests/hour
– Analysis Method: end-point, kinetic, two-point, double
-reagents,double-wavelength, multi-standard etc, open
to various reagents
– Data Processing: memory up to 200,000 patients’ data

Sample/Reagents Handling
– Sample Position: 40 pcs (Include standard,QC,STAT positions)
– Sample volume: 2-50µl, 0.1µl step
– Sample Probe Cleaning: automatic internal & external washing
– Sample Dilution: automatic/Manual pre-dilution, with
dilution ratio up to 1:100
– Reagent Position: 40 pcs (With refrigerated function, 2℃-8℃)
– Reagent Volume: 10-500µl, 1µl step
– Reagent Probe: automatic liquid level detect, with collision
protection function
– Reagent Probe Cleaning: automatic internal & external washing

Reaction System
– Reaction Cuvette: 90 pcs made of special material
– Optical Length of Cuvette: 6mm
– Reaction Volume: 200~500µl
– Reaction Time: 8-10 minutes
– Reaction Temperature: 37℃±0.1℃
– Mixing System: independent mixing probe

Optical System
– Light Source: halogen-tungsten lamp
– Wavelength: 300-700nm, 9 wavelengths, precision ±2nm
– Absorbance Range: 0~4.0Abs
– Resolution: 0.001Abs
– Spectrophotometry: rear spectrophotometry

Cleaning System
– 8-step automatic washing, automatic cuvette dry function
– Water Consumption: 4L/hour

Working Condition
– Power Supply: ~100-240V, 50/60Hz, 1KVA
– Temperature: 10℃-35℃
– Humidity: ≤90%, no dew
