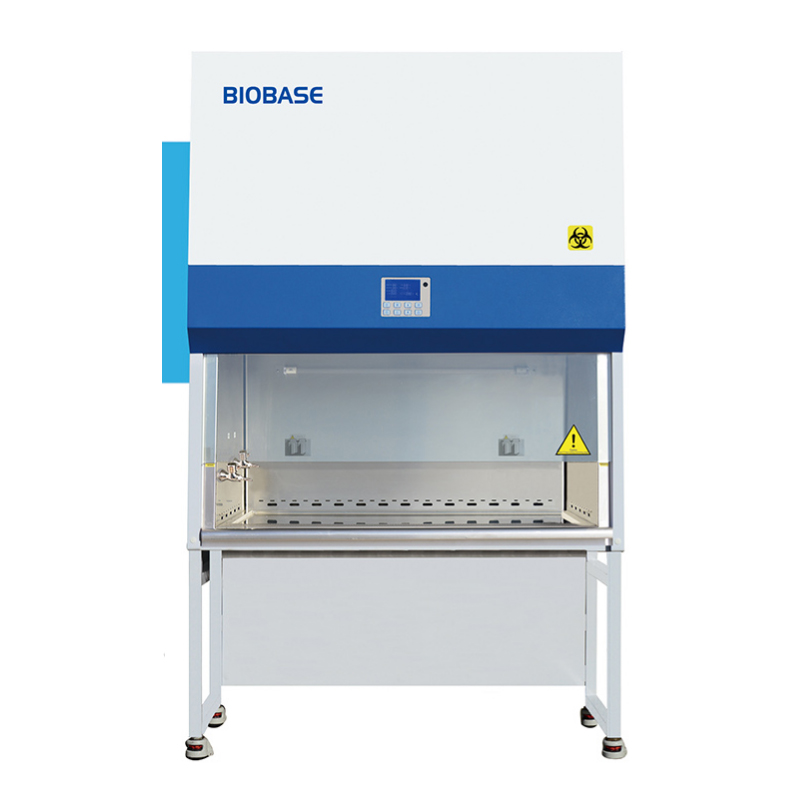

NSF Certified Class II Biosafety Cabinet Class II Type A2

General Details

Brand BIOBASE
Product origin CHINA
Supply capacity Factory Direct Supply

Advantages:

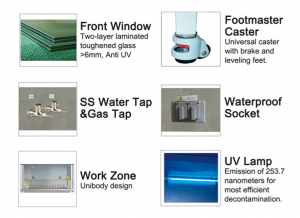

  • Motorized front window.
  • Large LCD display, all information displayed.
  • Automatic air speed adjustable with filter block.
  • With memory function in case of power-failure.
  • Side & back wall is made up of single piece stainless steel.
  • Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
  • Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

This cabinet defined as class II A2 type microbiological safety cabinet.

NSF Certified Class 2 Biosafety Cabinet Class II Type A2

Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaust A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.

Model
Model BSC-4FA2(4′) BSC-3FA2-GL(3′) BSC-3FA2-NA(3′) BSC-4FA2-GL(4′) BSC-4FA2-NA(4′) BSC-6FA2-GL(6′) BSC-6FA2-NA(6′)
Internal Size
(W*D*H)mm
1210*600*660 910*600*660 1210*600*660 1700*600*660
External Size (W*D*H)mm 1383*775*2295 1087*775*2265 1383*775*2295 1873*775*2295
Work Surface Height 750mm
Max Opening 550mm (22’’) 520mm(20.5’’) 550mm (22’’) 550mm (22’’)
Tested Opening Safety height 200mm(8”) Safety height 254mm(10’’) Safety height 254mm(10’’) Safety height 254mm(10’’)
Front Window Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV
HEPA Filter Two, 99.995% efficiency at 0.3μm, filter life indicator
Filter Guard Type Aluminum alloy frame
Noise NSF 49≤67 dB
Illumination ≥1000Lux
Display LCD Display
Waterproof Socket 2, Total consumption:≤500W
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
